SZ-03A-K6 Three Phase Standard Meter

Name: SZ03AK6 Three Phase Standard Meter
Brand: GENY
Price: 1 USD

Buy cheap SZ-03A-K6 Three Phase Standard Meter product

Brand Name : GENY

Model Number : SZ-03A-K6

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Aluminum case with carton

Display : Digital

Test Voltage Range : 30V – 480V

Test Current Range : 10mA – 120A

Frequency Range : 45Hz – 65Hz

Contact Now

SZ-03A-K6 Three Phase Standard Meter

Guangzhou GENY Electric Co. Ltd. has over 20 years of experience in the Electric Energy Meter measurement field. We are a technological leader with an excellent R&D team that continuously develops innovative solutions to meet customer needs. Our company is ISO9001-2000 certified and fully integrates this standard into R&D, production, marketing, and service to ensure quality. We offer a competitive pricing strategy and comprehensive support, including maintenance, training, and software updates, through our well-trained service team.

Specifications:

	SZ03A-K6
Test Voltage
Range	30V – 480V
Error	±0.05% (30V – 480V) ±0.1% (5V – 50V)
Display range	5.000000V – 480.0000V
Test Current
Range	10mA – 120A
Error	±0.05% (0.2A – 120A) ±0.1% (10mA – 0.2A)
Display range	1.000000mA-120.0000A
Power measure error
Active power	±0.05% (0.2A – 120A)
Reactive power	±0.1% (0.2A – 120A)
Apparent power	±0.1% (0.2A – 120A)
Energy measure error
Active energy	--
Reactive energy	--
Apparent energy	--
Phase angle
Range	0º – 360º
Error	±0.05º
Display range	0.000001º -- 359.9999º
Frequency
Range	45Hz – 65Hz
Display range	45.0000 – 65.0000
Pulse output
High frequency output(CH)	1×109 (0.2A – 1A) 1×108 (1A – 10A) 1×107 (10A – 120A)
Low frequency output(CL)	2×10-5×CH
Pulse ratio	1:1
Output level	5V
Pulse input
Input level	--
Input frequency	--
Other
Voltage Supply	220V ± 10%, 50/60Hz ± 2Hz
Ambient temperature	10°C -- 30°C
Influence of external fields	≤ 0.05 % / mT
Relative humidity	45% -- 75%
Dimensions (W×H×D) (mm)	432×131×308
Weight (kg)	15

Description:

This is a Wide Current Range Three-Phase Reference Standard Meter, designed for Stationary Three-Phase Energy Meter Test Systems.

High Accuracy: Up to 0.05%
Testing Types:3-phase 4-wire, 3-phase 3-wire
Testing Modes: Active power, reactive power, cross-connection reactive power
Measurement Capabilities: Voltage, current, phase, frequency, power for each phase
Additional Features: Measurement of phase-to-phase angle, sum of active power, sum of reactive power
Data Management:Test data can be managed via computer through an RS232 interface

SZ-03A-K6 Three Phase Standard Meter

For more information, please visit our website:(http://www.genymetertestequipment.com/).

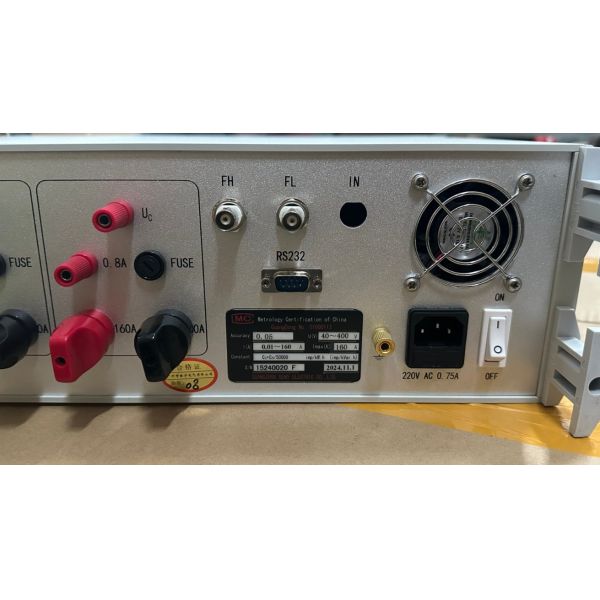

SZ-03A-K6 Three Phase Standard Meter Images
